Fit the vsn model

vsn2.Rd

vsn2 fits the vsn model to the data in x and returns a vsn object with the fit parameters and the transformed data matrix. The data are, typically, feature intensity readings from a microarray, but this function may also be useful for other kinds of intensity data that obey an additive-multiplicative error model. To obtain an object of the same class as x, containing the normalised data and the same metdata as x, use


    fit = vsn2(x, ...)
    nx = predict(fit, newdata=x)

or the wrapper justvsn. Please see the vignette Introduction to vsn.

Usage

vsnMatrix(x,
          reference,
          strata,
          lts.quantile = 0.9,
          subsample    = 0L,
          verbose      = interactive(),
          returnData   = TRUE,
          calib        = "affine",
          pstart,
          minDataPointsPerStratum = 42L,
          optimpar     = list(),
          defaultpar   = list(factr=5e7, pgtol=2e-4, maxit=60000L,
                              trace=0L, cvg.niter=7L, cvg.eps=0))

# S4 method for class 'ExpressionSet'
vsn2(x, reference, strata, ...)

# S4 method for class 'AffyBatch'
vsn2(x, reference, strata, subsample, ...)

# S4 method for class 'NChannelSet'
vsn2(x, reference, strata, backgroundsubtract=FALSE,
       foreground=c("R","G"), background=c("Rb", "Gb"), ...)

# S4 method for class 'RGList'
vsn2(x, reference, strata, ...)

Arguments

x

An object containing the data to which the model is fitted.

reference

Optional, a vsn object from a previous fit. If this argument is specified, the data in x are normalized "towards" an existing set of reference arrays whose parameters are stored in the object reference. If this argument is not specified, then the data in x are normalized "among themselves". See Details for a more precise explanation.

strata

Optional, a factor or integer whose length is nrow(x). It can be used for stratified normalization (i.e. separate offsets \(a\) and factors \(b\) for each level of strata). If missing, all rows of x are assumed to come from one stratum. If strata is an integer, its values must cover the range \(1,\ldots,n\), where \(n\) is the number of strata.

lts.quantile

Numeric of length 1. The quantile that is used for the resistant least trimmed sum of squares regression. Allowed values are between 0.5 and 1. A value of 1 corresponds to ordinary least sum of squares regression.

subsample

Integer of length 1. If its value is greater than 0, the model parameters are estimated from a subsample of the data of size subsample only, yet the fitted transformation is then applied to all data. For large datasets, this can substantially reduce the CPU time and memory consumption at a negligible loss of precision. Note that the AffyBatch method of vsn2 sets a value of 30000 for this parameter if it is missing from the function call - which is different from the behaviour of the other methods.

backgroundsubtract

Logical of length 1: should local background estimates be subtracted before fitting vsn?

foreground, background

Aligned character vectors of the same length, naming the channels of x that should be used as foreground and background values.

verbose

Logical. If TRUE, some messages are printed.

returnData

Logical. If TRUE, the transformed data are returned in a slot of the resulting vsn object. Setting this option to FALSE allows saving memory if the data are not needed.

calib

Character of length 1. Allowed values are affine and none. The default, affine, corresponds to the behaviour in package versions <= 3.9, and to what is described in references [1] and [2]. The option none is an experimental new feature, in which no affine calibration is performed and only two global variance stabilisation transformation parameters a and b are fitted. This functionality might be useful in conjunction with other calibration methods, such as quantile normalisation - see the vignette Introduction to vsn.

pstart

Optional, a three-dimensional numeric array that specifies start values for the iterative parameter estimation algorithm. If not specified, the function tries to guess useful start values. The first dimension corresponds to the levels of strata, the second dimension to the columns of x and the third dimension must be 2, corresponding to offsets and factors.

minDataPointsPerStratum

The minimum number of data points per stratum. Normally there is no need for the user to change this; refer to the vignette for further documentation.

optimpar

Optional, a list with parameters for the likelihood optimisation algorithm. Default parameters are taken from defaultpar. See details.

defaultpar

The default parameters for the likelihood optimisation algorithm. Values in optimpar take precedence over those in defaultpar. The purpose of this argument is to expose the default values in this manual page - it is not intended to be changed, please use optimpar for that.

...

Arguments that get passed on to vsnMatrix.

Value

An object of class vsn.

Note on overall scale and location of the glog transformation

The data are returned on a \(glog\) scale to base 2. More precisely, the transformed data are subject to the transformation \(glog_2(f(b)*x+a) + c\), where the function \(glog_2(u) = log_2(u+\sqrt{u*u+1}) = asinh(u)/\log(2)\) is called the generalised logarithm, the offset \(a\) and the scaling parameter \(b\) are the fitted model parameters (see references), and \(f(x)=\exp(x)\) is a parameter transformation that allows ensuring positivity of the factor in front of \(x\) while using an unconstrained optimisation over \(b\) [4]. The overall offset \(c\) is computed from the \(b\)'s such that for large \(x\) the transformation approximately corresponds to the \(\log_2\) function. This is done separately for each stratum, but with the same value across arrays. More precisely, if the element b[s,i] of the array b is the scaling parameter for the s-th stratum and the i-th array, then c[s] is computed as log2(2*f(mean(b[,i]))). The offset c is inconsequential for all differential expression calculations, but many users like to see the data in a range that they are familiar with.

Specific behaviour of the different methods

vsn2 methods exist for ExpressionSet, NChannelSet, AffyBatch (from the affy package), RGList (from the limma package), matrix and numeric. If x is an NChannelSet, then vsn2 is applied to the matrix that is obtained by horizontally concatenating the color channels. Optionally, available background estimates can be subtracted before. If x is an RGList, it is converted into an NChannelSet using a copy of Martin Morgan's code for RGList to NChannelSet coercion, then the NChannelSet method is called.

Standalone versus reference normalisation

If the reference argument is not specified, then the model parameters \(\mu_k\) and \(\sigma\) are fit from the data in x. This is the mode of operation described in [1] and that was the only option in versions 1.X of this package. If reference is specified, the model parameters \(\mu_k\) and \(\sigma\) are taken from it. This allows for 'incremental' normalization [4].

Convergence of the iterative likelihood optimisation

L-BFGS-B uses three termination criteria:

  1. (f_k - f_{k+1}) / max(|f_k|, |f_{k+1}|, 1) <= factr * epsmch where epsmch is the machine precision.

  2. |gradient| < pgtol

  3. iterations > maxit

These are set by the elements factr, pgtol and maxit of optimpar. The remaining elements are

trace

An integer between 0 and 6, indicating the verbosity level of L-BFGS-B, higher values create more output.

cvg.niter

The number of iterations to be used in the least trimmed sum of squares regression.

cvg.eps

Numeric. A convergence threshold for the least trimmed sum of squares regression.

See also

justvsn, predict

References

[1] Variance stabilization applied to microarray data calibration and to the quantification of differential expression, Wolfgang Huber, Anja von Heydebreck, Holger Sueltmann, Annemarie Poustka, Martin Vingron; Bioinformatics (2002) 18 Suppl.1 S96-S104.

[2] Parameter estimation for the calibration and variance stabilization of microarray data, Wolfgang Huber, Anja von Heydebreck, Holger Sueltmann, Annemarie Poustka, and Martin Vingron; Statistical Applications in Genetics and Molecular Biology (2003) Vol. 2 No. 1, Article 3. http://www.bepress.com/sagmb/vol2/iss1/art3.

[3] L-BFGS-B: Fortran Subroutines for Large-Scale Bound Constrained Optimization, C. Zhu, R.H. Byrd, P. Lu and J. Nocedal, Technical Report, Northwestern University (1996).

[4] Package vignette: Likelihood Calculations for vsn

Author

Wolfgang Huber

Examples

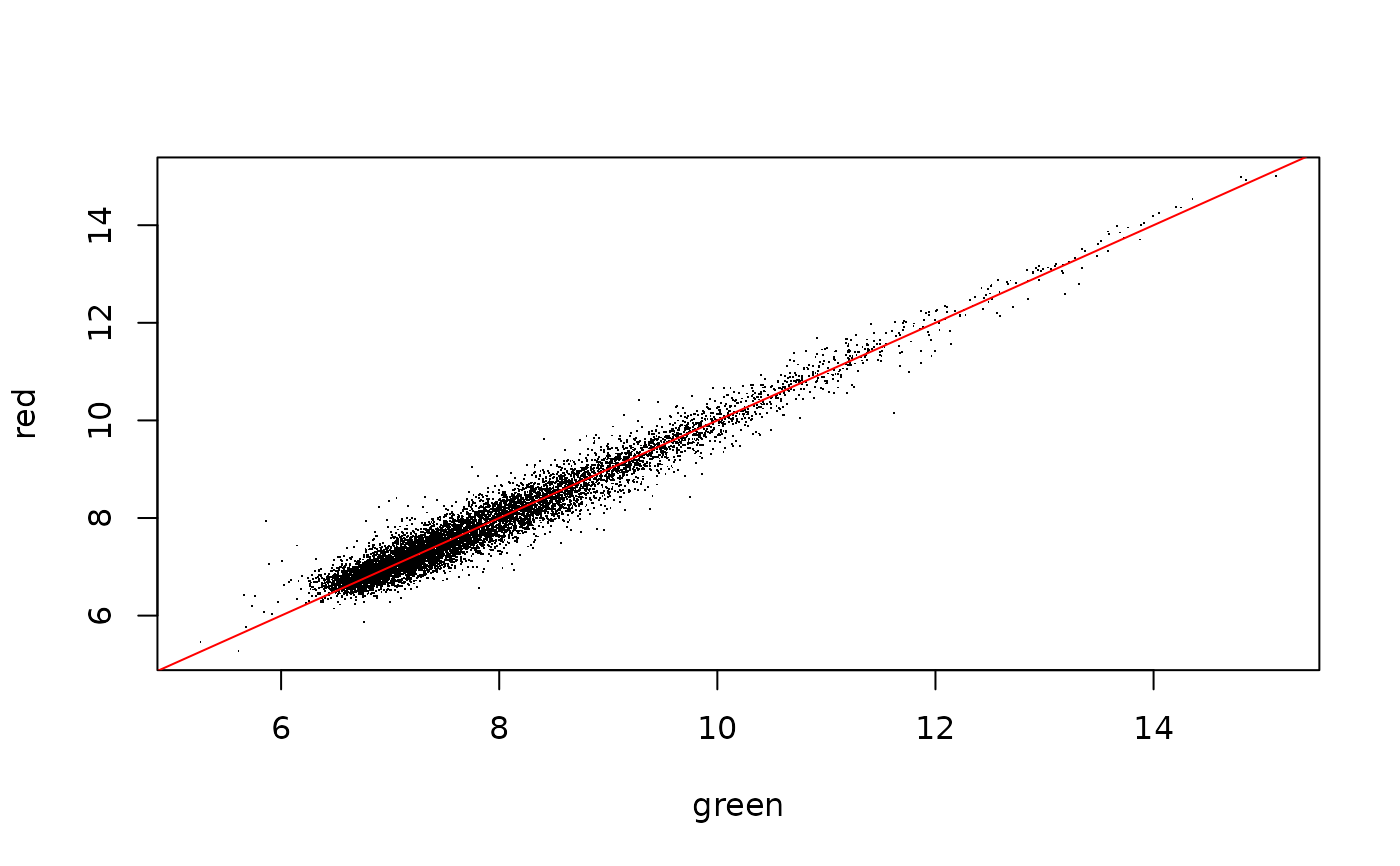

data("kidney")

fit = vsn2(kidney)                   ## fit
nkid = predict(fit, newdata=kidney)  ## apply fit

plot(exprs(nkid), pch=".")
abline(a=0, b=1, col="red")
